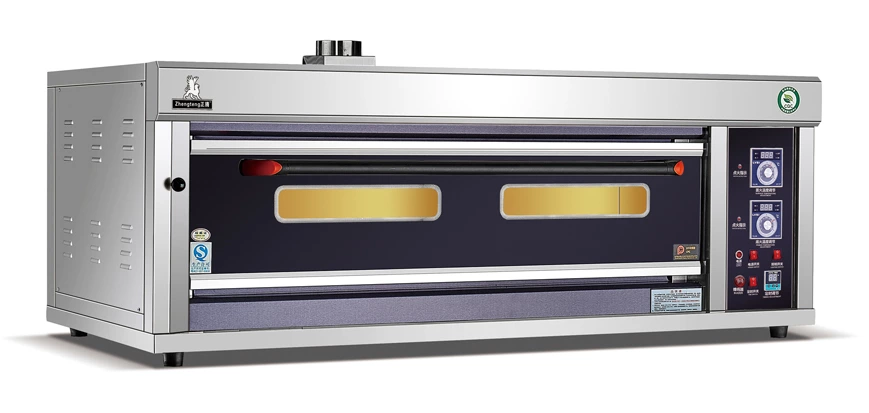

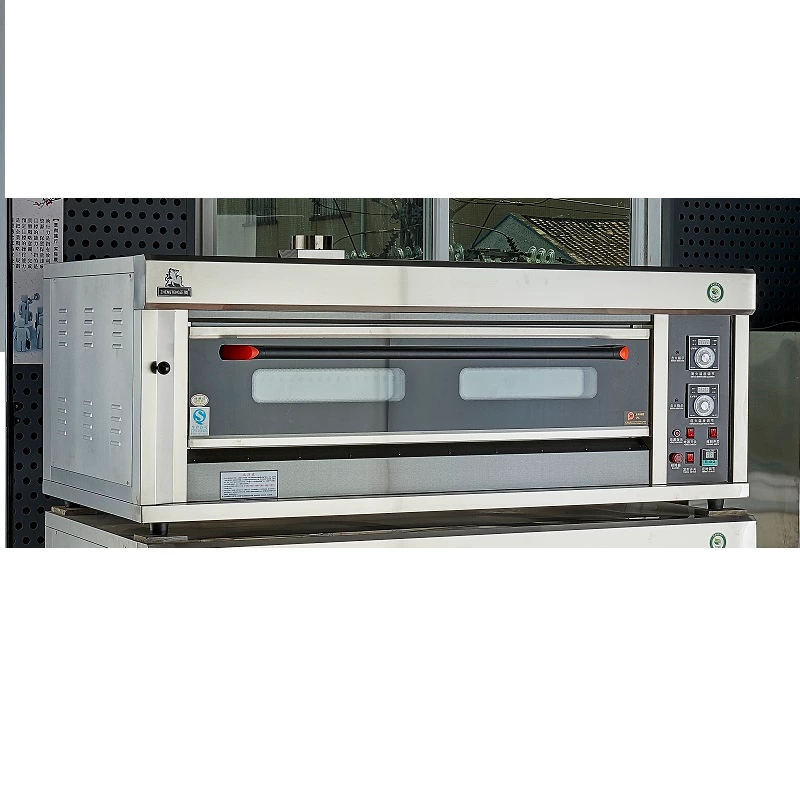

Stainless Steel Countertop 1 Deck Gas Baking Oven

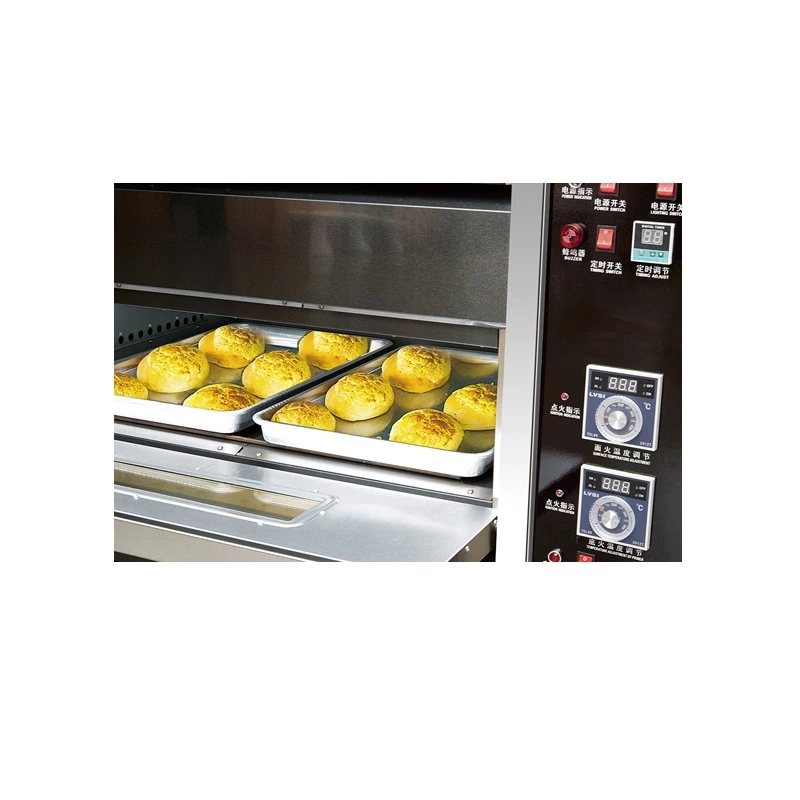

1-Deck 3-Tray gas oven is available for 3pcs 400*600mm baking trays.
Technical specifications
- Product
- 1-Deck 3-Tray Gas Oven
- Model
- YHQ1-3
- Fuel type
- Gas
- Dimension
- 1780*900*680mm
- Internal chamber size
- 1280*675*225mm
- Voltage
- 220V
- Power
- 0.1Kw
- Temperature
- 30-400°C
- Production
- 40-75Kg/H
- Consumption
- 0.45Kg/H

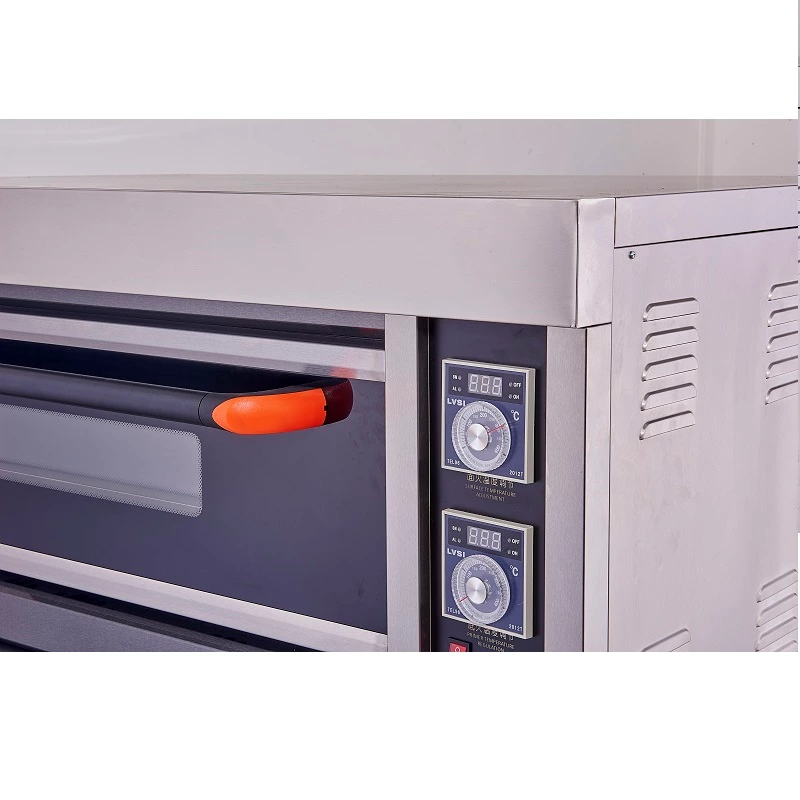

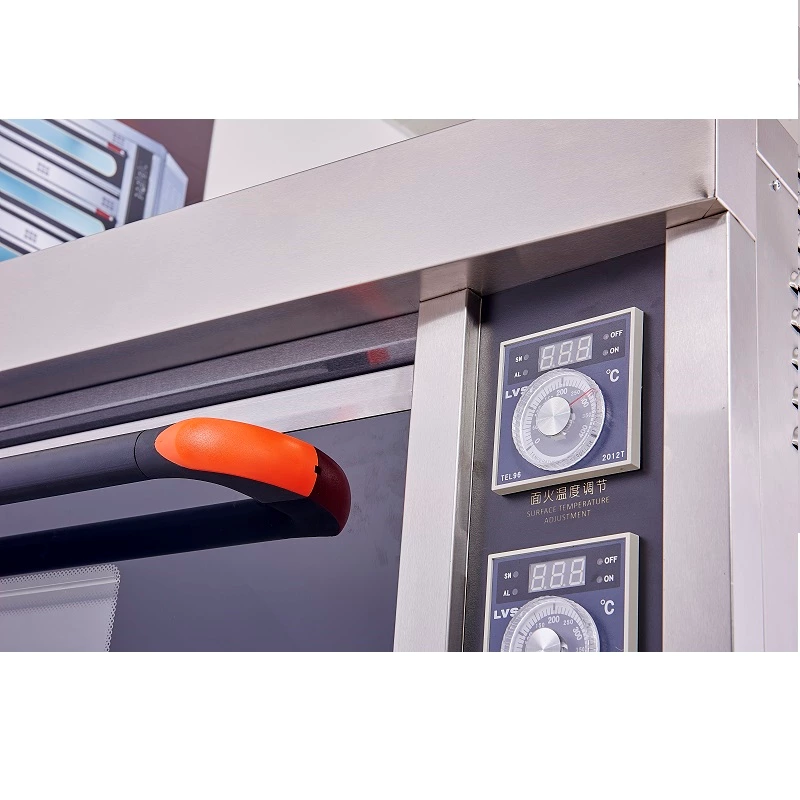

Featuring a full-glass window for an elegant and stylish appearance, the unit is equipped with a microcomputer control panel that allows independent dual control of both the hob and bottom temperatures, ensuring effortless operation.
The advanced microcomputer pulse ignition and flame monitoring system ensures a high ignition rate. In case of accidental flameout or gas depletion, the system automatically alerts the user, providing safety and peace of mind.
High-quality stainless steel burner tubes are used, which heat up quickly, have a long working life, high combustion thermal efficiency, and low gas consumption.
Compared to traditional electric ovens, this model eliminates the need for power capacity expansion and additional electrical wiring, making it economical and practical.
The timer alarm device is simple to operate, ergonomically designed for comfortable handling, and offers a refined and convenient user experience.
1deck 3tray gas oven
| Model | Number of Trays | Voltage | Power | Temperature | Production | Fuel Type | Gas Consumption | Dimension(mm) |
|---|---|---|---|---|---|---|---|---|
| YHQ 1-3 | One layer, three trays | 220V | 100W | 30°C-400°C | 40-75kg/h | LPG | 0.45kg/h | 1780*900*680 |
| YHQ 2-6 | Two layer, six trays | 220V | 200W | 30°C-400°C | 75-150kg/h | LPG | 0.9kg/h | 1780*900*1470 |
| YHQ 3-9 | Three layer, nine trays | 220V | 300W | 30°C-400°C | 110-220kg/h | LPG | 1.35kg/h | 1780*900*1840 |
